We provide these wiring diagrams for pcmtuner users, which are convenient for them to quickly view the wiring diagram offline without network, and also for some users who only have our pcmtuner dongle.
Here are all the wiring diagrams for our dear customers.
PCMtuner instructions for 58 61 71 protocols
Module 58 protocols
Module 61 protocols
Module 71 protocols
PCMTuner Module 58
Temic DSG/CVT
Function
DQ200MQB/G2 (0CW)
DQ250MQB (0D9)
Reading, writing, checksum correction
VL381/DL382 (0AW/0CK)
DL501/G2 (0B5)
DQ200 (0AM)
DQ250E/F (02E)
VL300/V30 (01J/0AN)
Writing, checksum correction
DQ200/MQB/G2 Boot (EEPROM)
DQ250E/F/MQB Boot (EEPROM)
DL501/G2 Boot (EEPROM)
VL381 Boot (EEPROM)
DL382 Boot (EEPROM)
Honda UDCT Boot (Continental TC1782/EEPROM)
Reading, writing
DQ200/MQB/G2 Boot (MICRO)
DQ250E/F/MQB Boot (MICRO)
VL381 Boot (MICRO)
DL501/G2 Boot (MICRO)
DQ500 (0BH/0BT)
VL300/V30 BSL (FLASH)
VL300/V30 BSL (EEPROM)
DQ250C (02E)
DL382 Boot (MICRO)
Honda UDCT Boot (Continental TC1782/MICRO)
Reading, writing, checksum correction.
VAG DQ200 (0AM, 0CW) TCU
VAG DQ250 (02E, 0D9) TCU
VAG DQ500 (0BT, 0BH) TCU
Audi V30 (01J)/VL300 (01J) TCU
Audi VL381 (0AW) TCU
Audi DL501 (0B5) TCU
Audi DL382 (0CK) TCU

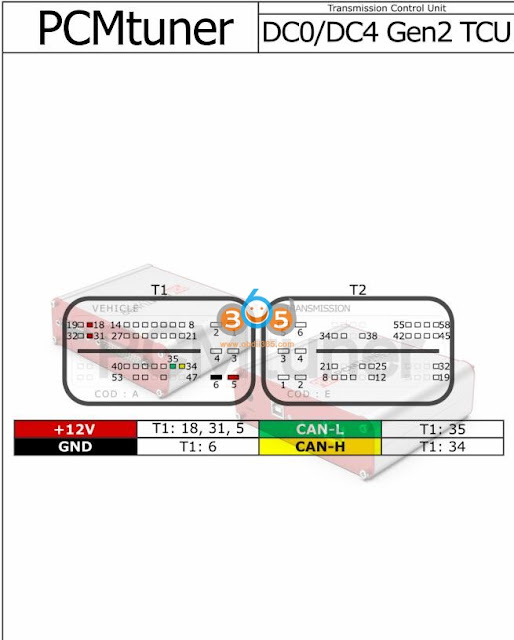

Renault DC0/DC4 Gen2 TCU
Honda LuK-UDCT TCU
PCMTuner Module 61
Kia Hyundai CPGDSH/CPEGD
1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS
Reading, writing, checksum correction.
1.4T, 1.6L (CPEGD2.20.3/CPEGD2.20.4/UDS) – requires direct connection to the ECU
1.0L, 1.2L (CPEGP2.10.1/CPGPSH2.14.1/UDS)
Reading, writing, checksum correction, unlocking
CPPEGD2.20.x
CPPEG 2.10.1
CPGDSH2.14.x/2.26.x
CPGPSH2.14.1
PCMTuner module 71
PCMTuner Bosch MEDC17 Bootloader
(direct connection to the ECU connector, Scanmatik 2 Pro, a connection cable and a power supply are required)
MEDC17 (TC1762/1766/1792/1796) FLASH
MEDC17 (TC1724/1728/1767/1782/1784/1797) FLASH
MEDC17 (TC1791/1793) FLASH
Reading, writing, checksum correction.
MEDC17 (TC1762/1766/1792/1796) EEPROM
MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM
MEDC17 (TC1791/1793) EEPROM
Reading, writing.
MEDC17 BSL PASSWORD
Reading.
Module 71 includes lots of ECUs and lots of pinout diagrams.
the module 71 wiring diagrams are available in the download link above.
If you need dimsport bench wiring diagram, download pinout tool here for reference:
http://blog.obdii365.com/2022/04/10/egpt-v1-4-pinout-tool-for-bosch-ecu-connections/
